Medium Capacity Units
37kVA - 80kVA MODELS

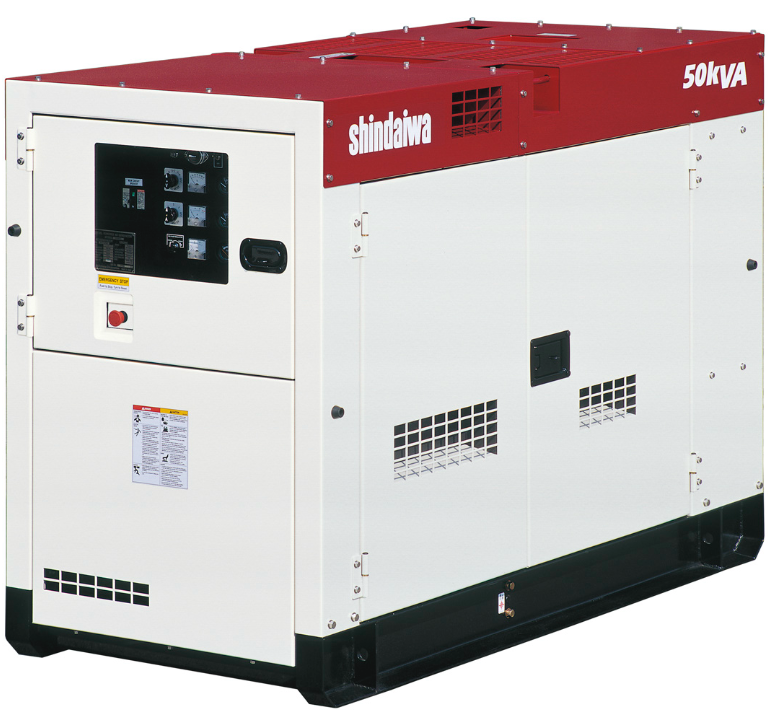

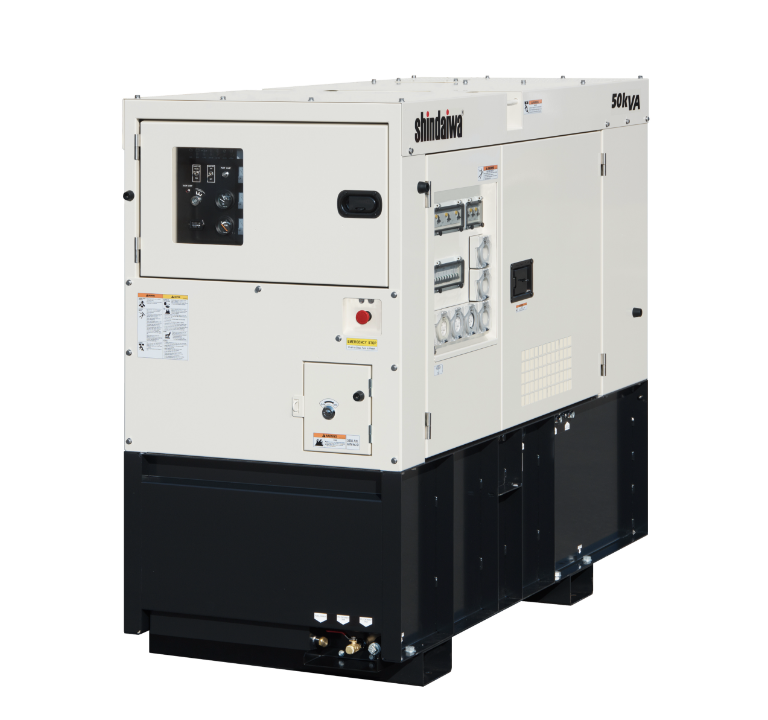

Shindaiwa’s medium capacity sound attenuated mobile generators combine design simplicity with uncompromising standards of engineering and manufacturing excellence.
37kVA RT
37kVA W
50kVA RT
50kVA W
80kVA RT
Powerful, quiet and reliable Kubota and Isuzu diesel engines. Easy maintenance access with fully sealed
lockable panel doors and battery lockout. All serviceable items accessible on one side.
Easy to view and operate control panel protected
behind a lockable door panel with window. Includes
voltage regulator, Fuel/Water temp, Voltage, Amps, and Frequency meters.
Market respected Kubota high efficiency direct injection Diesel engines with Oil/ Water over temperature shutdown, heavy duty alternator and battery. Easy maintenance access with fully sealed lockable panel doors and battery lockout. All serviceable items accessible on one side.
Configuration & Performance Details
| 37kVA RT | 37kVA W | 50kVA RT | 50kVA W | 80kVA RT | |
|---|---|---|---|---|---|
| Noise (@ 7m) | 53 dB(A) | 56 dB(A) | 56 dB(A) | 58 dB(A) | 57 dB(A) |
| Tank Capacity | 210 L | 360 L | 398 L | 420 L | 580 L |
| Maint. & Fuel scheduling | Yes-Auto | Yes-Auto | Yes-Auto | Yes-Auto | Yes-Auto |
| Dimensions | 1770x920x1350 | 1750x880x1790 | 2000x950x1430 | 1970x880x1665 | 2750x1000x1400 |
| Weight | 1650kg | 1191kg | 2200kg | 1315kg | 2800kg |
| Operating Manual | Download | Download | Download | Download | Download |
